SPECIFICATION:

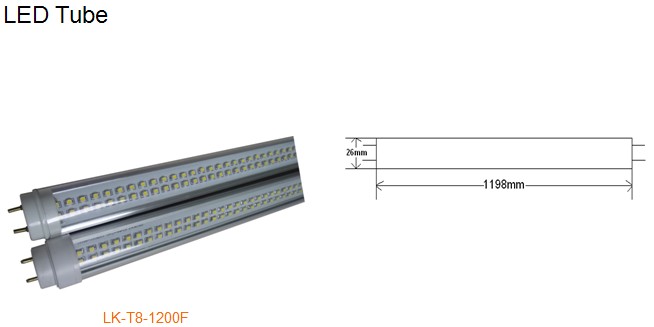

Model NO: LK-T8-1200F

1)LED:288pcs SMD3528

2) Adopt Aluminum alloy with high heat resistance and high light transmission of plastic cover

3) Tube size:Φ26×1198(L) mm (T8 tube)

4) Net weight:739g

5) Output power:17W

6) View angle: 120°

7) Color temperature:3000K-3500K,4000K-4500K,6000K-6500K

8) Output luminous flux:1200~1600Lumens

9) CRI (color rendering index):70~85

10) No UV and IR radiation, no blinking

11) CE & RoHS compliance

12) Long life up to 50,000 hours (25 degrees)

PRODUCT SUPPLY:
1) Input voltage: AC198~265V/50~60Hz
2) Power efficiency:≥80%
3) Power factor:≥0.95

AMBIENT CONDITION:
1) Applicable humidity:≤95%
2) Applicable temperature:-40~60°C

APPLICATION:
1) Widely used in interior lighting area
2) Mounting height:2.5m~3.0m

INSTALLATION METHODE:
Step (1) Take away the traditional fluorescent tube.
Step (2) Take off the starter.
Step (3) Shorting the ballast connect lines.
Step (4) Put on the LED Fluorescent lamp.
Remark: Of course we can replace the traditional fluorescent tube directly,but the power efficiency will be reduced slightly.
